microSD Card

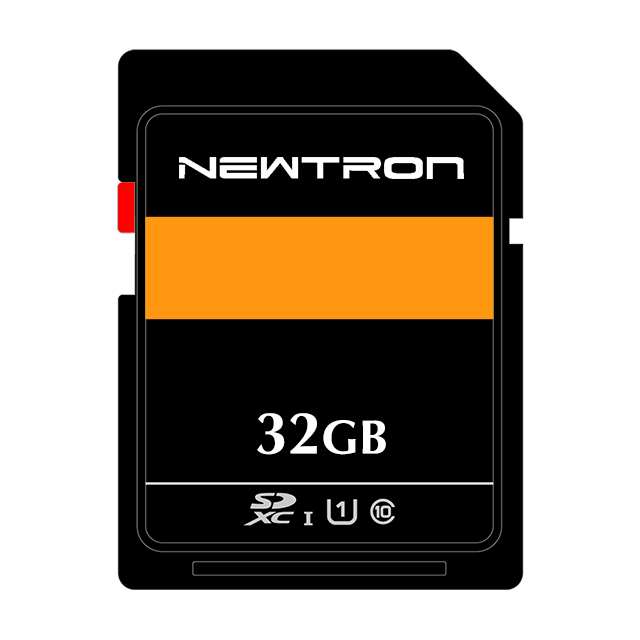

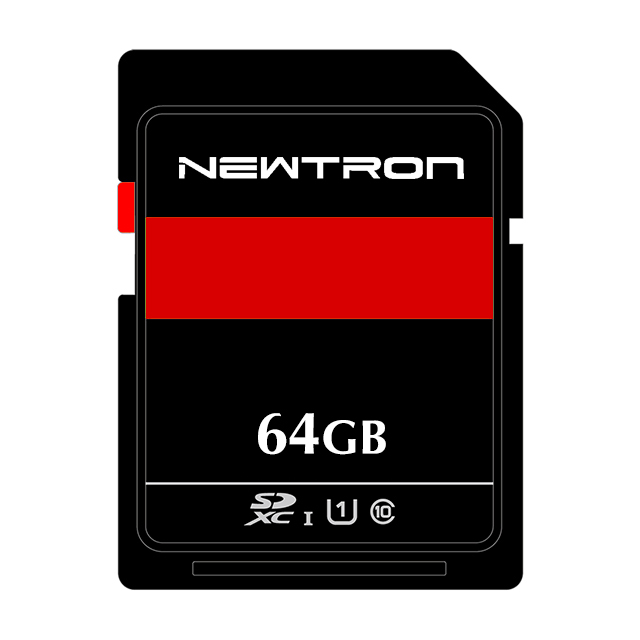

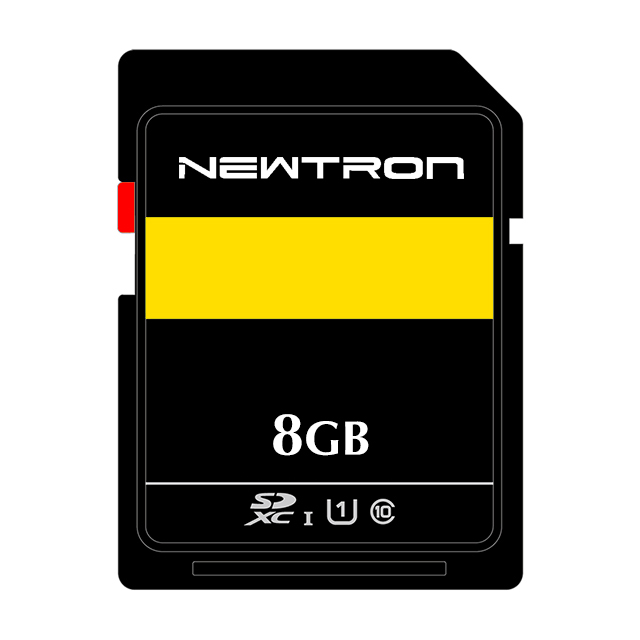

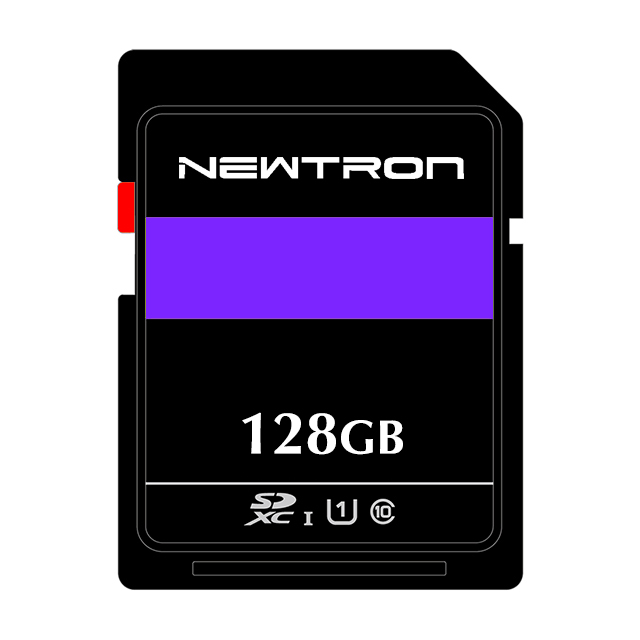

SD Card
The SD Card is developed to provide an inexpensive, mechanically robust storage medium in card form for consumer multimedia applications. Low power consumption and wide supply voltage range favor mobile and battery-powered applications such as audio players, organizers, cellular phone, electronic dictionaries, PDAs, camcorders and digital cameras By using effective data compression schemes such as MPEG, the SD Card provides enough capacity for all kinds of multimedia data such as program, text, music, voice, image and video.
- Secure Digital Card interface standard
- Capacity : 4GB – 512GB
- Flash Memory: Micron/Intel/Samsung/Toshiba
- Controller: SMI or Alcor
- Module size: 32mm x 24mm x 2.1mm
- Low power consumption
- Mechanical write-protection switch
- RoHS compliant products
- Hi-Speed USB 3.0 or 2.0 compliant
- True Plug and Play functionality
- Built-in Error Correcting Code (ECC) to detect and correct transfer errors
- Durability: 10,000 cycles
- Commercial Working Temperature: -25°C (-13°F) to 85°C (185°F)
- Industrial Working Temperature: -40°C (-40°F) to 85°C (185°F)
- Operating Voltage: 2.7V~3.6V
- Weight: 2g
