DDR RDIMM

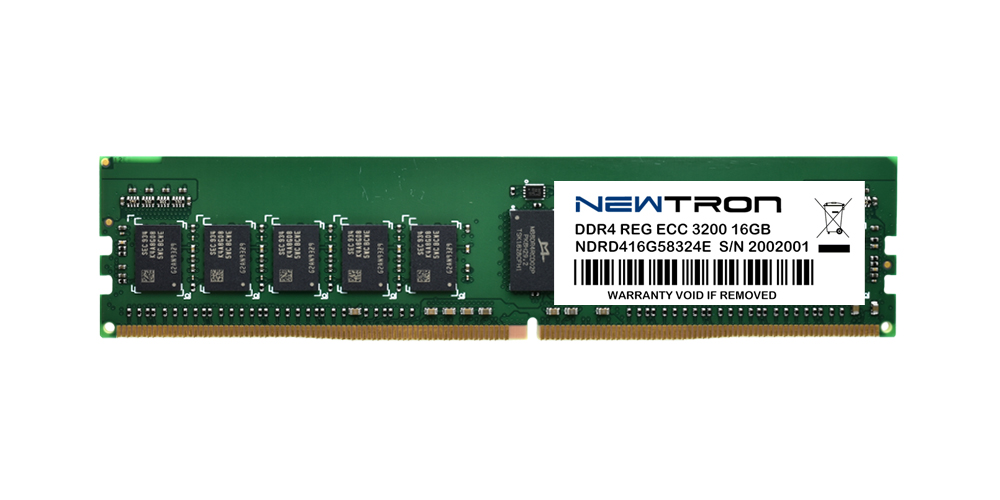

DDR4
Registered DDR4 delivers top speed with better bandwidth and reliability using less energy. It transfers more data faster than ever before, offering 4 bank groups (total 16 banks) to reduce interleaving delays, plus 3,200 Mbps bandwidth and 1TB/s system memory. 1.2V low operating voltage and Pseudo Open Drain (POD) interface enables lower power consumption, using 25% less energy.
- Spec: 288pin ECC Registered DIMM
- Capacity: 4GB / 8GB / 16GB / 32GB
- Frequency: 2133 / 2400 / 2666
- Clock: CL15-15-15-36 / CL16-16-16-39 / CL19-19-19-43
- Commercial Working Temperature: 0°C (32°F) to 70°C (158°F)
- Industrial Working Temperature: -40°C (-40°F) to 85°C (185°F)
- Voltage: 1.2V
- Size: 133.4 x 31.3mm
- RoHS compliant products

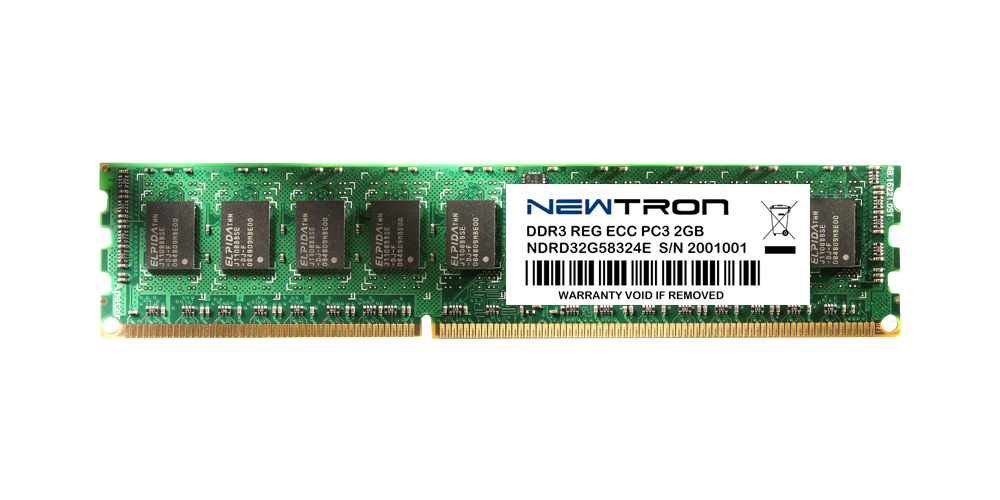

DDR3
Registered DDR3 enhanced bandwidth and reliabilty drives a broad range of applications such as server, embedded, automotive and surveillance, all at double the speed of DDR2.
- Spec: 240pin ECC Registered DIMM
- Capacity: 2GB / 4GB / 8GB
- Frequency: 1333 / 1600
- Commercial Working Temperature: 0°C (32°F) to 70°C (158°F)
- Industrial Working Temperature: -40°C (-40°F) to 85°C (185°F)
- Voltage: 1.5V (or 1.35V)
- Size: 133.4 x 31.3mm
- RoHS compliant products
