2.5" SSD

mSATA SSD

M.2 2280 (NGFF)

M.2 NVMe 2280

Solid state drives dominate the market for PC upgrades because they are faster and lighter than hard disk drives. SSDs also feature less power, create less noise when in operation, and are more shock-resistant than traditional hard drives.

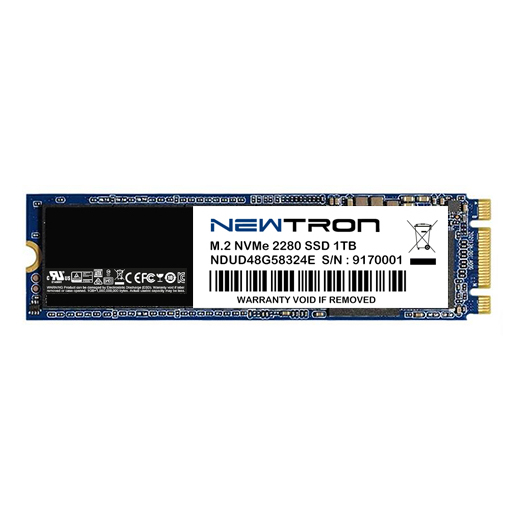

M.2 NVMe 2280 SSD

• Interface: PCIe Gen3*4
• Flash Type: SLC / MLC / 3D TLC
• Capacity: 128GB / 256GB / 512GB / 1TB
• Size: 22mm x 80mm x 3.5mm
• Weight: 8g
• Read Speed: up to 2400MB/s
• Write Speed: up to 1700MB/s
• Datapath Protection
• High Performance
• Best-in-class Low Power
• NANDXtend™ ECC Technology
• MTBF: 1,500,000 hours
• Commercial Working Temperature: 0°C (32°F) to 70°C (158°F)
• Industrial Working Temperature: -40°C (-40°F) to 85°C (185°F)
• Operating Voltage: 5V
• Operating System: Microsoft Windows 7 / 8 / 10, Linux
