DDR SODIMM
● DDR5
● DDR5
● DDR5

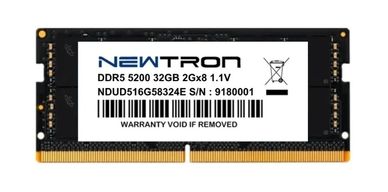

DDR5 is the latest generation of DRAM specification, with speeds starting at 4800MT/s, higher than DDR4 3200MT/s. Data transmission rates can reach up to 8800MT/s. It increases the capacity of a single module to 128GB. The voltage dropped to 1.1V, power consumption reduced by approximately 20%. DDR5's core advantages include onboard PMIC power management and doubled prefetch. The single channel was split into a dual channel, and On-die ECC was introduced to improve stability.
- Spec: 262 pin unbuffered DIMM on-die ECC
- Capacity: 8GB / 16GB / 32GB
- Frequency: 4800 / 5600 / 6000 / 6400
- Clock: CL30 / CL32 / CL36
- Commercial Working Temperature: 0°C (32°F) to 70°C (158°F)
- Industrial Working Temperature: -40°C (-40°F) to 85°C (185°F)
- Voltage: 1.1V
- RoHS compliant products
● DDR4
● DDR5
● DDR5
High-performing memory empowers faster, powerful solutions. DDR4 delivers top speed with better bandwidth and reliability using less energy. DDR4 transfers more data faster than ever before, offering 4 bank groups (total 16 banks) to reduce interleaving delays, plus 3,200 Mbps bandwidth and 1TB/s system memory. 1.2V low operating voltage and Pseudo Open Drain (POD) interface enables lower power consumption, using 25% less energy.
- Spec: 260 pin unbuffered SO-DIMM Non ECC
- Capacity: 4GB / 8GB / 16GB / 32GB
- Frequency: 2133 / 2400 / 2666 / 3200
- Clock: CL15-15-15 / CL16-16-16 / CL19-19-19 / CL22-22-22
- Commercial Working Temperature: 0°C (32°F) to 70°C (158°F)
- Industrial Working Temperature: -40°C (-40°F) to 85°C (185°F)
- Voltage: 1.2V
- RoHS compliant products
● DDR3
● DDR5
● DDR3
DDR3 enhanced bandwidth and reliabilty drives a broad range of applications such as notebooks, desktops, and industrial solutions including automotive, all at double the speed of DDR2.
- Spec: 204 pin unbuffered SO-DIMM Non ECC
- Capacity: 4GB / 8GB / 16GB
- Frequency: 1333 / 1600 / 1866
- Commercial Working Temperature: 0°C (32°F) to 70°C (158°F)
- Industrial Working Temperature: -40°C (-40°F) to 85°C (185°F)
- Voltage: 1.5V (or 1.35V)
- RoHS compliant products
